Polyhedral mesher
To analyze physical phenomena and calculate the changes of physical quantity, elements are placed in a region.

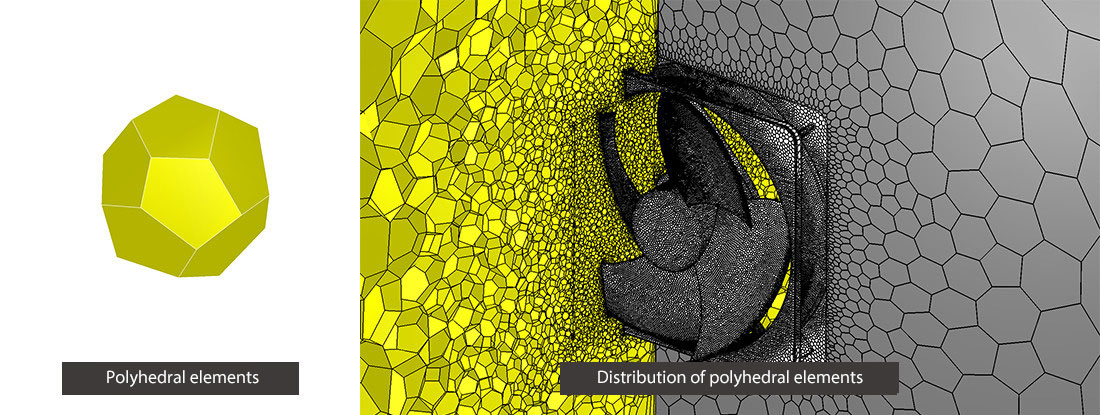

scFLOW is equipped with a polyhedral mesher (arbitrary polyhedrons) that will enhance stability and calculation accuracy of the cell-centered Solver.
This is an automatic mesher that will generate mesh according to the target number of elements, make mesh fine near wall surface where a rapid flow change is expected. Mesh coarseness for each part and region can also be specified.
A model can be meshed with polyhedral elements automatically.
Mesh generation of a duct
- POINT

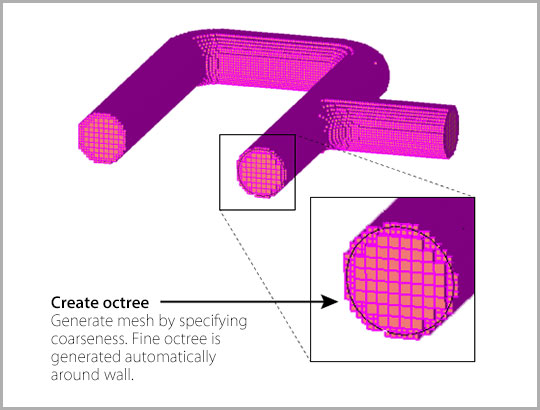

Size of octree is equivalent to the resolution of the result and the reproductivity of the model geometry
Calculation time is proportional to the number of elements and memory consumption
- POINT
Prism layers
As distance from wall is uniform, velocity gradient and temperature gradient can be calculated accurately and calculation stability is ensured.
